TG-Battery 002 Growatt 2.4kwh LiFePo4 Lithium Battery

Status: In Stock
  • Modular design for flexible capacity expansion
  • Maintenance-free structure
  • Easy setup
  • Safety performance with LiFePo4 (lithium iron phosphate) technology
  • Intelligent protections with high-performance BMS
  • Peak power up to 5 kW with a single module
Compare
SKU:TG-Battery 002

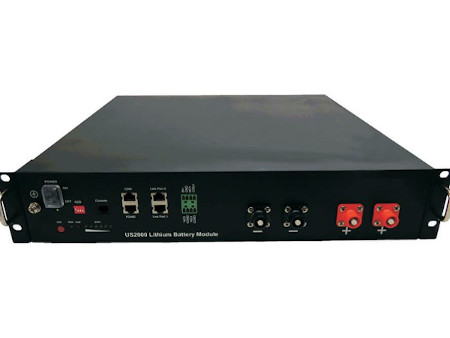

The Growatt US2000 modular LiFePo4 lithium battery offers more flexible battery capacity options. Up to 8 maximum parallel, simple parallel design minimizes installation time and cost.

The Growatt LiFePO4 lithium battery is designed to be connected in parallel to increase the power of the solar power system. The Battery Management System (BMS) enables the battery to be controlled and monitored by providing an online portal to the customer where they can view and manage their energy usage.

Technicial Specifications

Rated Voltage 48V
Nominal Capacity 2.4 kWh
Usable Capacity 2.2 kWh
Discharge Voltage 45 ~ 53.5 V DC
Charge Voltage 52.5 ~ 53.5 V DC
Charge/Discharge Current ≤ 25 A (recommended), 50 A (max.), 100 A (peak/15 sec)
Working Life 10 Years / 25oC
Cycle Life > 4500 (20oC, 90% DoD)
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +60oC
System Connection Maximum 8 units in parallel
Communication Port RS232, RS485, CAN
Certifications TÜV, CE, UN38,3
Dimensions 440 x 410 x 88.5 mm
Weight 24 kg
