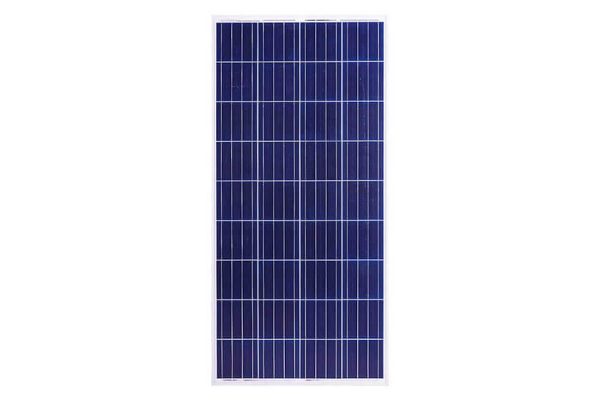

Polycrystalline solar panels, which provide maximum energy in their class, have A class high efficiency, long-term performance and resistant cells, are produced with meticulous design and production techniques. Solar modules meet the highest possible quality standards through applied quality control and testing.
Electrical Characteristics
| Maximum Power (Pmax) |
170 W |
| Open Circuit Voltage (Voc) |
22,3 V |
| Maximum Power Voltage (Vmp) |
18,6 V |
| Short Circuit Current (Isc) |
9,5 A |
| Maximum Power Current (Imp) |
9,14 A |
| Operating Temperature |
-40oC ~ +85oC |
| Number of Cells |
36 (4×9) |
| Dimensions |
1480 x 670 x 30 mm |
| Weight |
10,9 kg |
| Front Cover |
3.2mm low iron tempered anti-reflective glass |
| Frame |
Anodized aluminum finish |
| Cable |
4 mm2 / 12AWG, 1000 mm |
